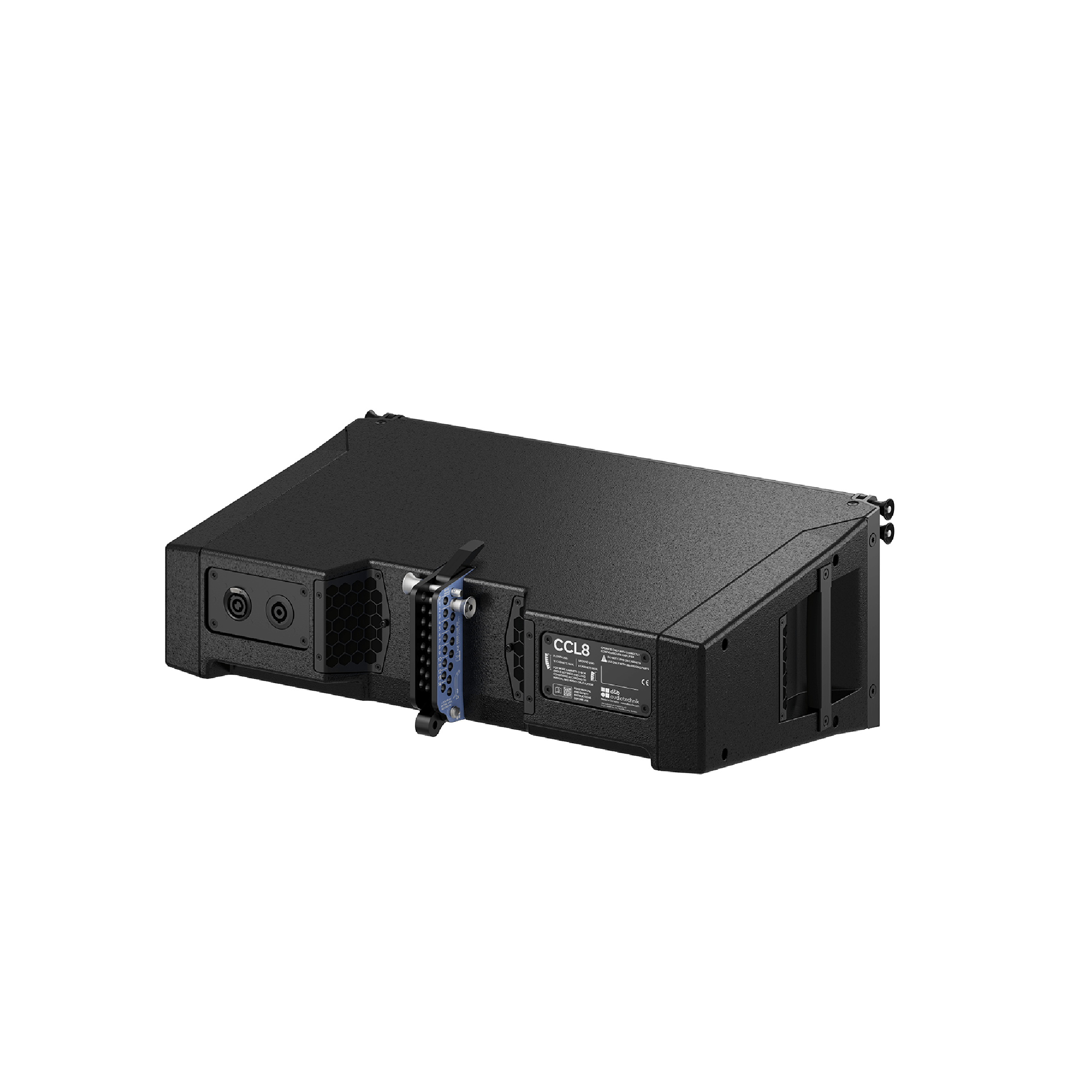

CCL8 loudspeaker
Line arrays

Mobile specific compact cardioid line array loudspeaker for small to medium-scale sound reinforcement

- Components LF: 2 x 7" + 2 x 5"; HF: 2 x 1.75"
- Dispersion 80°
- SPLmax 137 dB
- Weight 17.6 kg / 38.8 lb

The CCL8 is a compact cardioid line array loudspeaker for small to medium-scale sound reinforcement.

Owing to the arrangement of the forward and sideward LF drivers in combination with their processing functions, directivity is maintained across the entire operating bandwidth.

The frequency response extends from 62 Hz to above 18 kHz.

When the CCL Flying frame is used, up to 24 cabinets can be flown in vertical columns producing an 80° constant directivity dispersion pattern in the horizontal plane.

The cabinets are 2-way passive designs housing 2 x 7" neodymium forward LF drivers, 2 x 5" neodymium side firing LF drivers and two 1.75" exit HF compression drivers mounted to a dedicated wave shaping device. The cylindrical wave segments of each cabinet couple without gaps and sum up coherently. Splay angles between adjacent cabinets can be set in the range from 0° to 14° in 1° increments.
